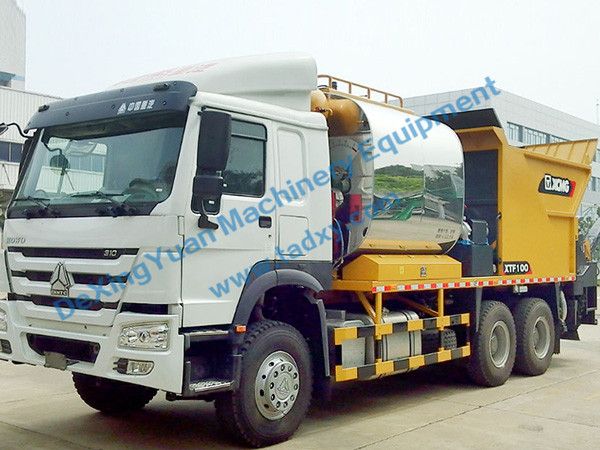

XZJ5251TFCTB (XTF1003) asphalt synchronous chip sealer
1.Overview
XZJ5251TFCTB (XTF1003) asphalt synchronous chip sealer can realize the synchronous spreading of asphalt and gravel, improve the quality of pavement seal coat; It can be used to spread rubber asphalt, matrix asphalt, modified asphalt and emulsified asphalt; It is applicable to the construction of lower and upper seal coat, wearing course construction for new and old road surface, layer spread method of asphalt pavement, the separate spreading of asphalt and gravel in special case, etc.; It can not only be used for the interlayer treatment and medium maintenance construction of high-grade highway, but also can be used for the construction of rural roads with less traffic.
2. Main performance and characteristics
*Internal lifting silo, low height, strong adaptability for culvert and under bridge construction
*Split plate type gravel spreader, suitable for different types of stone, spread evenly.
*Hydraulic folding asphalt spraying beam, safe and convenient
*Dual diesel burner asphalt tank, fast heating speed, good insulation performance; Paddle mixer, mix well.
*Chassis engine full power right-angle drive, maintenance convenient, effectively guarantee the power system security.
*Imported Belgian JOHNSON asphalt pump, imported hydraulic system, high reliability.
*Intelligent control system, just set distributing amount of asphalt spraying per square meter, automatic spraying can be achieved
*The touch screen in driver’s cab displays construction parameters and monitor picture in real time
*Strong spraying at start control technology realizes zero-start spraying of asphalt
*The control system is equipped with the alarm function of the material silo, which is timely reminding the user to lift the silo before shortage.
*The asphalt pipeline is pneumatically-controlled gate valve, automatic cleaning function, easy to operate.
*SINOTRUCK HOWO 6×4 heavy load chassis, strong power and comfortable driving
Item | Unit | Parameters |
Product model | - | XZJ5251TFCTB (XTF1003) |
Working performance parameter | ||
Maximum seal width | m | 4 |
Asphalt spraying amount | Kg/㎡ | 0.2 -3.0 |
Gravel quantity | L/㎡ | 3 -22 |
Distributing accuracy | % | ±1.5 |
Capacity of asphalt tank | m3 | 6 |
Gravel silo volume | m3 | 10 |
Gravel diameter | mm | 3 -25 |
Working speed | km/h | 3 -10 |
Chassis performance parameter | ||
Chassis model | - | HOWO ZZ1257N4347E1（China-Ⅴ） |
Engine type | - | D10.31 -50 |
Engine power | kW/r/min | 228 / 1900 |
Driving mode | - | 6×4 |
Maximum traveling speed | km/h | 80 |
Curb weight | kg | 19500 |
Fuel tank capacity | L | 400 |
Total mass | kg | 25000 |
PTO | ||
Type | - | XTF1003-QLQ1 |
Rated torque | N.m | 650 |
Overall dimension parameter | ||
Minimum ground clearance | mm | 280 |
Approach Angle/Departure Angle | ° | 16 / 10 |
Overall dimension | mm | 9920×2500×3790 |
